Hardware

Plug In. Light Up. Build.

RadarFlow runs on a Raspberry Pi 5 and connects to leading radar sensors. Flash the image onto your own Pi today — fully-installed kits coming soon — then plug in a supported sensor and stream live data in minutes (actual setup time varies with your hardware and network).

The Appliance

RadarFlow runs on a Raspberry Pi 5.

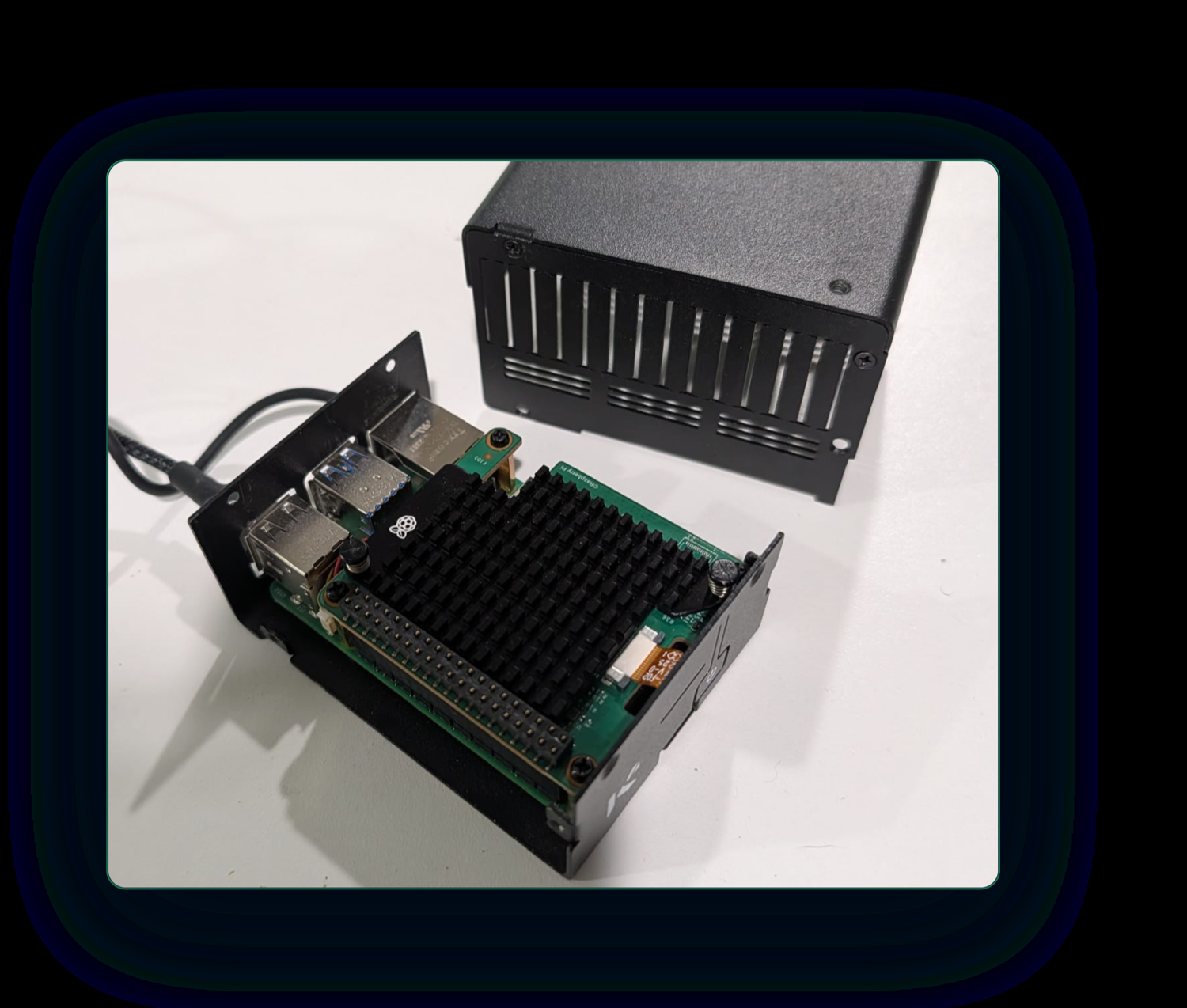

The RadarFlow appliance — a Raspberry Pi 5 beside its sealed enclosure — Connect a sensor and power — typically streaming live radar within minutes.

The full capture-and-processing pipeline runs on the appliance itself — no host PC. You drive it from any browser, on your laptop, iPad, or phone, and deploy it anywhere: bench, vehicle, or field.

Available now

Flash the image

Already have a Raspberry Pi 5? Write the RadarFlow image, boot, and connect your sensor.

Coming soon

Get a fully-installed kit

Prefer it turnkey? A pre-built appliance you can order, preconfigured with an AKM AK5818 radar sensor — power it on and you're streaming.

Runs on a Raspberry Pi 5 today · Nvidia Orin Nano support on the roadmap.

Supported Sensors

Then connect a radar sensor.

Every sensor below suits presence, vital-signs, gesture, and tracking work. The sensor is separate — buy it from the vendor and plug it in. More sensors are in development.

AKM AK5816 / AK5818

Supported

Asahi Kasei Microdevices (AKM)

AKM's 60 GHz radar IC family on the AIMEZ-V dev kit — the AK5816 for industrial, the AK5818 for automotive.

Frequency 60 GHz

Bandwidth 7 GHz

Channels 4Tx/4Rx

Interface USB + Ethernet

Dev Kit: AIMEZ-V (AKD5818AIM)

Manufacturer Buy on DigiKey

TI xWRL6844EVM

Coming Soon

Texas Instruments

For teams whose training data must come straight from the ADC — pairs with TI's DCA1000 for raw capture. RadarFlow support is in development.

Frequency 60 GHz

Bandwidth 7 GHz

Channels 4Tx/4Rx

Interface Ethernet + dual USB (EVM, DCA1000)

Raw capture DCA1000

SPI capture Planned (no DCA1000)

Dev Kit: xWRL6844EVM

Manufacturer Buy from TI

DreamBoards DreamHAT+

Supported

DreamBoards

Sits directly on the Raspberry Pi 5 header — the same Infineon BGT60TR13C silicon as the DEMO-BGT60TR13C dev kit, with no USB link or second box.

Frequency 60 GHz

Bandwidth 5.5 GHz

Channels 1Tx/3Rx

Interface SPI (Pi header)

Dev Kit: DreamHAT+ Radar (Pi HAT)

Manufacturer Buy at Pimoroni

Infineon BGT60UTR11AIP

Supported

Infineon Technologies

The simplest Infineon path: one transmit and one receive channel — for work where you don't need to separate targets by angle.

Frequency 60 GHz

Channels 1Tx/1Rx

Antennas In package

Interface USB

Dev Kit: DEMO-BGT60UTR11AIP

Manufacturer Buy on DigiKey

Infineon BGT60TR13C

Supported

Infineon Technologies

The same silicon as the DreamHAT+, on Infineon's own USB dev board.

Frequency 60 GHz

Bandwidth 5.5 GHz

Channels 1Tx/3Rx

Interface USB

Dev Kit: DEMO-BGT60TR13C

Manufacturer Buy on DigiKey

RFbeam V-LD3

Supported

RFbeam Microwave

A packaged, factory-calibrated module built on TI's low-power IWRL6432.

Frequency 60 GHz

Bandwidth 7 GHz

Channels 2Tx/3Rx

Interface USB-C (eval kit)

Dev Kit: V-LD3 Evaluation Kit

Manufacturer Buy on DigiKey

Sensor specifications per vendor datasheets.

Don't See Your Sensor?

Request Sensor Support

We're adding new radar sensors regularly. If your sensor isn't listed yet, let us know — we'll prioritize it based on demand.

Join the Beta Request a Sensor
